Item specifics
  • Item Type: Blood Pressure
  • Material: ABS PLEASTIC
  • Model Number: TLC9803
  • Size: 111mm(L)*60mm(W)*25mm(H)
  • Commodity Quality Certification: CE
  • Application: Arm
Product Description


Related Products






Kindly Remark

1.For Russian customers, please fill in receiver\'s full name in the order due to new policy of Russian customs,

   otherwise you probably won\'t receive package finally.

2.For Brazil customers, please offer us your value added tax number (CPF number) in the order message,  the CPF number needs to be provided to courier before shipping. Thank you.

3. Product you receive will not come with battery,as it can not ship by air.Hope you can understand,thank you!

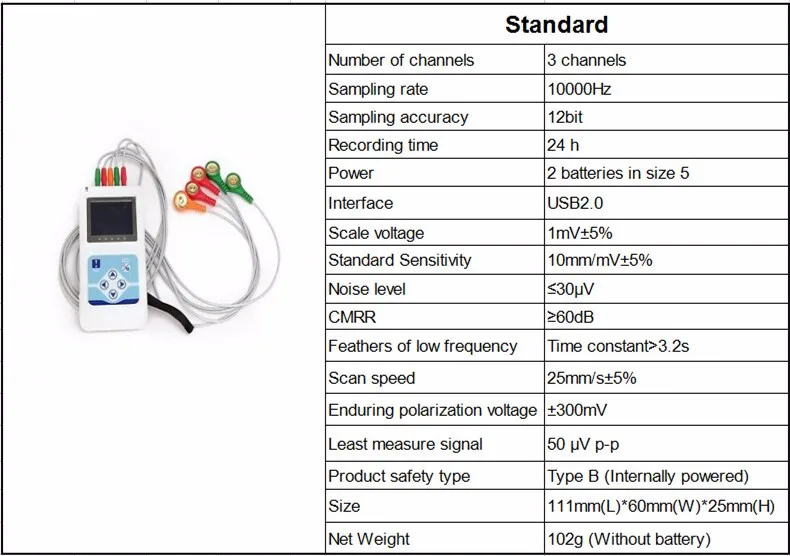

Diagnostic-tool TLC9803 Portable Cable 24 Hour Heart Monitoring 3 Channels Recordable Dynamic ECG System

Model no.: TLC9803


products show


Tlc9803s-l400 (6)s-l400 (3)s-l400 (5)s-l400 (4)s-l400 (2)s-l400 (7)



products details




Products Features

Recorder Features
* With advanced design and technology, the recorder can work stably,
dependable and durable.
* Be provided with the capability of anti-jamming and shock-pro.
* Small volume with OLED screen. The resolution is 160*128.
* Be provided with functions of waveform preview, record review and event
*Accurate record of the start time of the data sampled owing to the real time clock
of itself.
*Avoid damage owing to the repeating inserting and pulling out by using the
inbuilt TF card to storage the data.
*The maximum capability can be 2GB, so the original data can be saved perfectly
by no compression.
*The average review time of single case can be less than 40 seconds by using
interface of USB 2.0.
*Record waveform details inextenso by the design of high precision and sampling
*Record the state of pacemaker exactly by higher sampling frequency.


The features of software
*Quick and accurate analysis system.
*With 3 leads synchro analysis, QRS search can be more exactly.
* There are more than 10 templates as atrial premature beat module, ventricular premature beat module, long interval module, atrial flutter module, atrial fibrillation module etc. and multiplicate User-defined templates could almost identify every kind of pathologic waveforms.
*Optional main channel.
* Agile and exact "Atrial Fibrillation" analysis.
*The function of pacing analysis could analyse all pacemakers.
* Many pacine modules have been added.
* Any period of single lead or 3-leads ECG can be reviewed at any time with the
function of fast waveform review and analysis.
* The types of the analysis system of HR variability include five minutes of short
ECG and one hour or 24-hour of long ECG.
* Print report expediently.
* Perfect function of case management.
* With the function of ST segment analysis and general load of the disorder of the heart muscle, the physician can judge a disease or disorder of the heart muscle generally.
*"Sleep breath pause syndrome analysis", the physician could print sleep asphyxia
analysis report and diagnose.
*"HRT" analysis, when the adjustable function is natural, this transitory change
will be represented by the form of HRT immediately.
*15."T Wave Alternation" analysis is a important index on judging and preventing arrhythmia.


Standard accessory

3-lead ECG lead wires *1

ECG electrode *1

USB data line*1



User manual*1






One year


shipment 01




















Packaging Details
  • Unit Type: piece
  • Package Weight: 2.0kg (4.41lb.)
  • Package Size: 25cm x 20cm x 10cm (9.84in x 7.87in x 3.94in)
