Operation of the product is simple and convenient
The product is small in volume, light in weight and convenient in carrying
Power consumption of the product is low and two originally equipped AAA batteries can be operated continuously for 20 hours.
The product will automatically be powered off when no signal is in the product with 5 seconds.
4 directions display mode without waveform
Waveform display mode as line drawing or filling manner
Major Applications and Scope of Application
The Pulse Oximeter can be used to measure human Hemoglobin Saturation and pulse rate through finger, and indicate the pulse intensity by the bar-display. The product is suitable for use in family,hospital (Ordinary sickroom), Oxygen Bar, social medical organizations and also the measure of saturation oxygen and pulse rate.
1. Display format: OLED Display
SpO2 Measuring Range: 0%-100%
Pulse Rate Measuring Range: 30bpm-250bpm
Pulse Wave Display: columniation display and the waveform display
2. Power requirements:2*1.5V AAA alkaline battery
3. Power Consumption: Smaller than 30MA
4. Resolution:1% for Spo2 and 1 bpm for Pulse Rate
5. Measurement Accuracy: ±2% in stage of 70%-100% SpO2,and meaningless when stage being smaller than 70%.±2bpm during the pulse rate range of 30-99bpm and ±2% during the pulse rate range of 100-250 bpm.
6. Measurement Performance in Weak Filling Condition:SpO2 and Pulse rate can be shown correctly when pulse-filling ratio is 0.4%.SpO2 error is ±4%,pulse rate error is ±2bpm during the pulse rate range of 30-99 bpm and ±2% during the pulse rate range of 100-250bpm.
7. Resistance to surrounding light: The deviation between the value measured in the condition of man-made light or indoor natural light and that of darkroom is less than ±1%.
8. It is equipped with a function switch. The Oximeter can be powered off in case no finger in the Oximeter within 5 seconds.

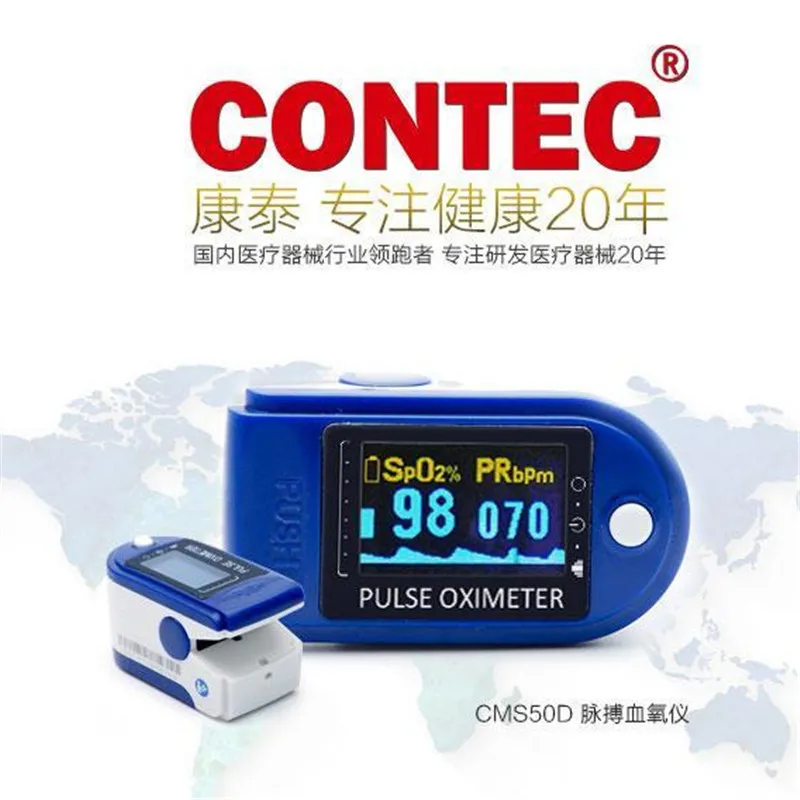

Finger Pulse Oximeter
Model : CMS 50D

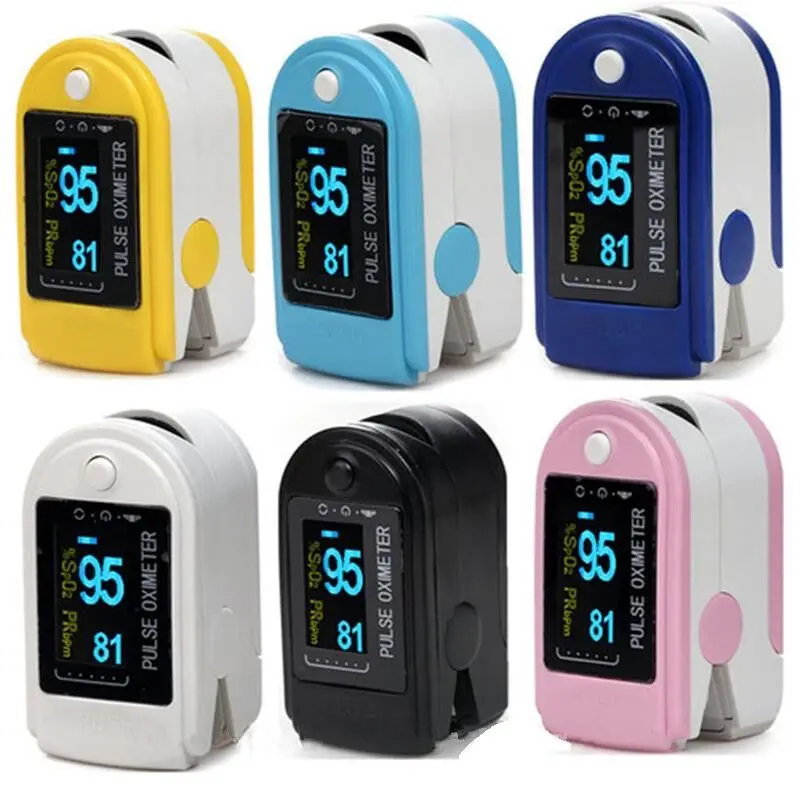

We have 6 colours: white, black, yellow, pink,
dark blue and light blue.
If you have color demands,please leave message to us.
If we don\'t receive your requirements for color, we will deliver in random color. Thanks for your understanding!
