Item specifics
  • Item Type: Blood Pressure
  • Model Number: ECG80A
  • Brand Name: CONTECMED
  • Commodity Quality Certification: CE
  • Application: Arm
Product Description

CONTEC ECG80A -Hand-held ECG machine With Free PC based Software



$T2eC16FHJI!FHSHI0ezvBSMr3c!qBg~~60_3



Introductions



This product is single channel,12 leads electrocardiograph, can be widely applied in ECG checkup under different circumstances such as in family ,hospital consultation, doctor\'s diagnosis, physical check-up,social medical organizations etc. it can implement real time continuous records of clear and exact single-channel ECG waveform using thermal sensitive printer at the same time. waveforms also can be frozen at any time. it has manual and automatic modes to be chosen and Chinese/English operation interface,it is easy to be used.





Features

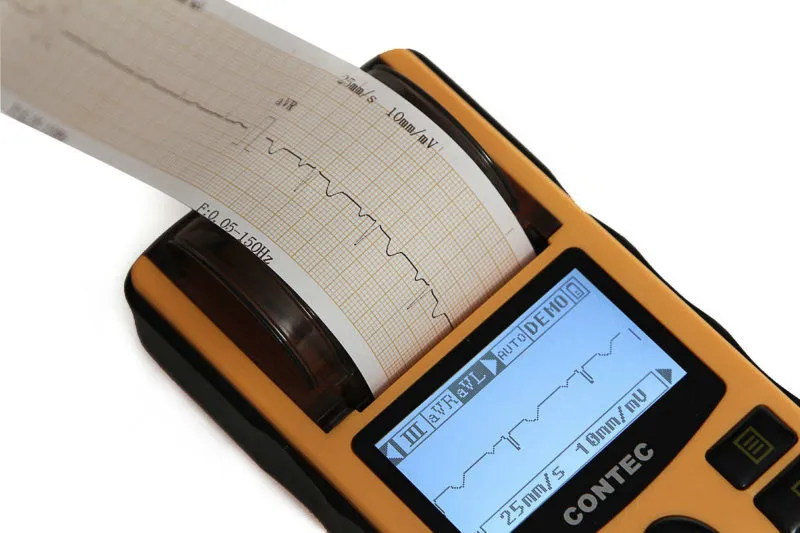

1. 2.7" FSTN display shows the working status and ECG waveform. Check the waveform before printing to save record paper.

2. Output system:High resolution thermal array(8dots/mm),it needs not be adjusted.Recording frequency Response:Up to 150Hz.

3. The device can record exact single ECG waveform and remark. The mark includes:lead sign,ensitivity,paper speed,filter state.

4. Under automatic mode,just press the button once,it starts record procedure,which can enhance your work efficiency

5. The language of operation interface include Chinese,English,French,Italian,Turkish,Espanol,Deutsch,Russia

6. The keyboard\'s control is whole touch type,it\'s convenient to operate.

7. Classification:IEC class I,type CF defibrillator proof

8. This instrument can record 160 pieces of ECG waveform and 4 hours continually under the best DC state

9. The figure of whole device is elegancy and gliding

10. According to defendence degree of deleterious fluid, this device is belong to common device.

11. Digital signal processor for effective inhibition of  AC,EMG and DFT,receive the better ECG waveform.

12. According to the working mode class, this device belongs to continuous operation equipment.





Technical Specification



1. Normal work environment

  Environment temperature: +5~+35

  Relative humidity:  <80%

  Atmospheric pressure: 86kPa~106kPa



2. Store and Transportation

  Environment temperature: -10~55

  Relative humidity: <95%

 Atmospheric pressure: 50kPa~106kPa



3. Input way: Floating and defibrilation protection



4. Lead: Standard 12 leads



5. Patient leak current: <10uA



6. Sampling rate:1000Hz



7. A/D change:10 Bit



8. Frequency response: 0.05Hz~150Hz



9. Time constant: Time constant>3.2s



10. CMRR: >60dB, >100dB( With AC filter)



11. Enduring polarization voltage:500mV



12. Noise level: 15uVp-p



13. EMG interference filter: 35Hz(-3dB)



14. AC filter:50Hz/60Hz(20dB)



15. Sensitivity choice: 5,10,20mm/mV, error:5%.Standard sensitivity is 10mm/mV0.2mm/mV



16. Recording way: Thermal printing system



17. Auto-record: according the the record format and auto-mode to set, auto leads-changing, auto measurement.



18. Manual record: according the record format to record, manual leads-changing.



19. Specification of recording paper:50mm(W)*20mm(L)High-speed thermal paper



20. Paper speed: 25mm/s,50mm/s,error:5%



21. Product safety type:IEC class I,type CF defibrillator proof



22. Size:190mm(L)*90mm(W)*40mm(H)



23. Net Weight:0.45kg



24. Power supply

      Input: AC: 100-240V, 50/60Hz

      Output: DC: 9V

      DC: 7.4V, Lithium rechargeable battery

Notice: If you purchase more products, combine shipping is available for you.
$T2eC16JHJHkFFl8oIWy0BSMr3,DBtw~~60_3$(KGrHqJHJEMFIrONvZr,BSMr3dobQQ~~60_3
Packaging Details
  • Unit Type: piece
  • Package Weight: 3.2kg (7.05lb.)
  • Package Size: 40cm x 30cm x 21cm (15.75in x 11.81in x 8.27in)
